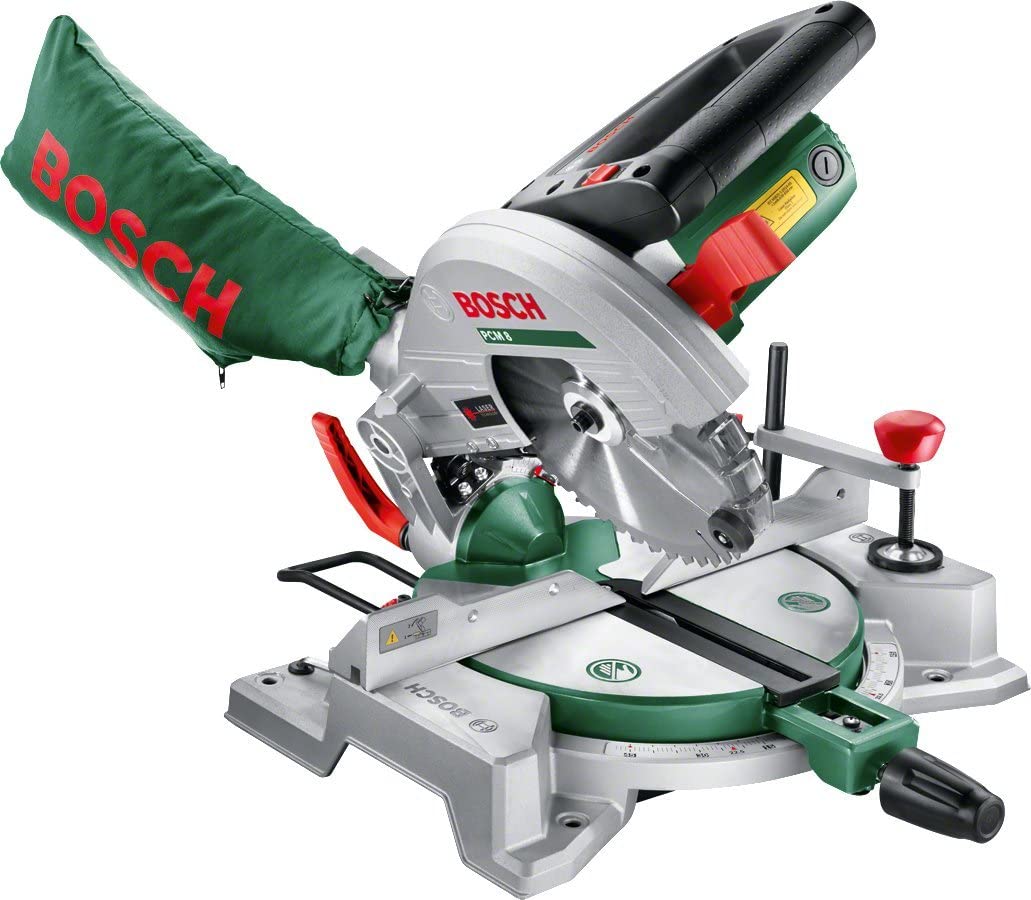

PCM 8 Mitre Saw
Product Description
The PCM 8 is a compact and lightweight mitre saw. Weighing only 7.9 kg, it is easy to operate and safe to control. Thanks to its powerful 1200 W motor, this saw works quickly and precisely at 4,800 rpm. The laser beam ensures additional precision. The high-quality saw blade has a diameter of 216 mm, which produces a cutting height of 60 mm. The PCM 8 is therefore especially suitable for cutting roof battens and square timber to size in interior fitting work.
Key product features:
Other product advantages:
Functions:
SoftgripLaser guidePCM 8 – Compact all-round saw.
The PCM 8 from Bosch with its low weight of only 7.9 kg is an especially light and compact mitre saw. Equipped with a powerful 1200 W motor that delivers 4,800 rpm, this saw works quickly and precisely. The PCM 8 is equipped with a laser beam to provide maximum precision. The high-quality saw blade has a diameter of 216 mm, which produces a cutting height of 60 mm. It is therefore especially suitable for cutting roof battens and square timber to size for interior fitting work and substructures, for example for patios.
Ideal for interior fitting work.
The PCM 8 is therefore especially suitable for cutting roof battens and square timber to size for interior fitting work and substructures, for example for patios. This makes it an indispensable tool for laying your own floor. DIYers can use it to shorten planks and skirting boards quickly and easily. To make it easier for DIYers to cut workpieces to size precisely, the cutting line is projected onto the workpiece by a laser beam. If you need to make a horizontal mitre cut, the saw table can be turned up to 48° to the right or left, altering the position of the workpiece with respect to the saw blade. The common working angles – 15°, 22.5°, 30° and 45° – automatically lock into place when turning the table. The width of the workpiece is maximum 120 mm at 90° and 85 mm at 45°.
Handy powerhouse.
The PCM 8 impresses especially due to its compact design and relatively low weight of 7.9 kg. This not only makes it easy to handle and control despite its power of 1200 W, but also convenient to transport and use anywhere. Thanks to its saw blade with a diameter of 216 mm, it achieves a cutting height of 60 mm and width of 120 mm. Cutting roof battens or planks with the PCM 8 is quick, easy and clean. Sawdust is collected in the dust bag or extracted via the easy-to-connect vacuum cleaner. A fast sawing rate is ensured by the powerful 1200 W motor.
Technical data:
Power input: 1.200 WNo-load speed: 4.800 rpmCircular saw blade rated diameter: 216 mmCircular saw blade bore size: 30 mmCutting capacity at 0°/0°: 60 x 120 mmCutting capacity at 45°/0°: 60 x 85 mmMitre setting: 48 ° L / 48 ° RBevel setting: 45 ° L / 0 ° RDepth x length x height: 48 x 41 x 29 cmMachine weight: 7,9 kg
Noise / vibration information:
Measured values determined according to EN 60745Total vibration values (vector sum of three directions).
Vibration emission value ah: 2.9 m/s²Uncertainty K: 0.3 m/s²
